If you're looking to repair your iPad Mini 4's sleep/wake function, you may need to solder a new sleep/wake sensor. This can be done by removing the connector with 6 solder pads, the home button, and other components that affect the sleep/wake function. You can then solder a new sensor in place with a soldering iron or a heat gun. Some users have also reported success by simply touching up the pins on the digitizer FPC with a soldering iron. It is also possible to enable the sleep/wake function without soldering by using a small piece of conductive metal to jump the connectors where the sleep/wake sensor would be installed.
iPad Mini 4 Sleep/Wake Sensor Soldering
| Characteristics | Values |
|---|---|
| Sensor Location | Near the home button or on the left side when iPad digitizer front side is down |
| Soldering Tools | Soldering iron, heat gun |
| Soldering Tips | Use a small hoof tip, lowest temperature solder |
| Alternative Methods | Use a small piece of conductive metal to jump the connectors |
| Troubleshooting | Check for shorted pads, clean soldering points with a wet finger |
Explore related products
What You'll Learn
Soldering equipment
To solder the sleep/wake sensor on an iPad Mini 4, you will need soldering equipment. Here is a list of the essential tools and some additional equipment that may be useful:
Soldering Iron
A soldering iron is a tool that supplies heat to melt the solder and create a strong joint. For soldering the iPad Mini 4 sleep/wake sensor, a soldering iron with a small hoof tip is recommended. It should be used at the lowest temperature your solder can handle.
Solder
Solder is a metal alloy in the form of a wire that melts when heated and solidifies to create a bond between two metal surfaces. It is essential for the soldering process.
Heat Gun
A heat gun is a device that emits a stream of hot air and can be used for various purposes, including soldering. It can be an alternative tool to the soldering iron for removing the connector with the solder pads.
Additional Equipment:
- Soldering stand: A soldering stand is used to hold the soldering iron when it is hot, providing a safe and convenient place to rest it during and after use.
- Soldering tip cleaner: This is used to clean and maintain the soldering iron tip, ensuring that it is free of any debris or oxidation that could interfere with the soldering process.
- Safety equipment: This includes items such as safety goggles to protect your eyes from any flying debris or splattering solder, and a respirator to prevent the inhalation of harmful fumes.
- Helping hands: "Helping hands" is a tool that provides extra assistance by holding the workpiece in place while you solder. It typically consists of a weighted base with adjustable arms and clips to hold the workpiece securely.
Battling the 3AM Wake-Up: A Guide to Better Sleep
You may want to see also
Explore related products
Soldering techniques
Soldering is the process of connecting different types of metals by melting solder. It is a crucial skill for working on avionics, printed circuit boards, and other types of electronics. While it may seem daunting at first, it becomes second nature with some practice.
- Use a good-quality soldering iron: The iron is the most important tool in soldering. While you don't need an expensive one, it is worth investing in a decent iron with a ceramic heating element that provides good control over the temperature. Look for irons with switchable tips for flexibility, allowing you to fine-tune the surface area that the iron heats. Common tip shapes include conical, chisel, and bevelled.
- Choose the right solder: The most common type of solder is 60/40 resin cored, which is 60% tin and 40% lead with flux built into the centre. You can also use lead-free rosin-core solder, which is the most popular type for modern electronics.
- Prepare your workspace: Before starting to solder, ensure your workspace is clean and well-organised. Have all the necessary tools and materials easily accessible.
- Maximise heat transfer: When soldering, use the flat edge of the iron for a larger surface area contact and better heat transfer. Hold the iron at a shallow angle to avoid melting the insulation. Keep the iron stationary and centred on the joint, applying gentle, firm pressure for effective heat transfer.
- Use flux: Flux is crucial as it helps the solder flow and reduces oxidation. Without flux, the solder will oxidize rapidly and result in poor joints.
- Clean the soldering iron: To prevent the tip of the soldering iron from oxidizing and corroding, clean it regularly. The cleaning process involves applying fresh solder to both sides of the iron (tinning) and then brushing off the excess solder with a brass sponge.
- Practice good technique: Take your time and practice on simple projects before moving on to more complex ones. Ensure that the metals you are joining are clean and free of any impurities.
Falling Asleep and Staying Asleep: A Guide to Slumber
You may want to see also
Explore related products
![Case for iPad mini 5/4 with Screen Protector Pencil Holder [360 Rotating Hand Strap] & Stand, Drop-Proof Case for iPad mini 5th/4th Generation 7.9 inch (Black)](https://m.media-amazon.com/images/I/81yAxtbqY5L._AC_UY218_.jpg)
Sleep/wake sensor location

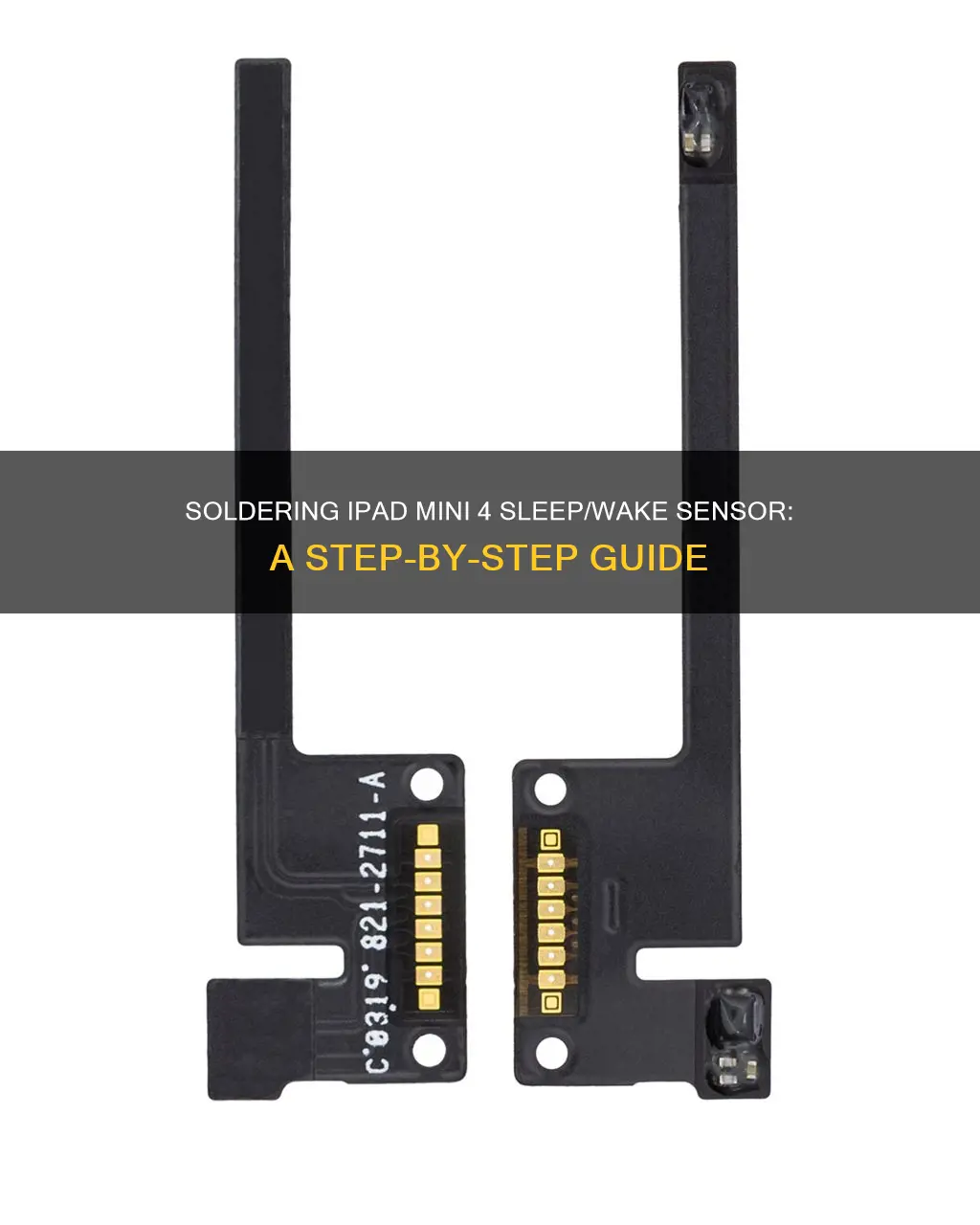

The sleep/wake sensor on the iPad Mini 4 is located just left of the home button when looking from behind the display. This small cable with components needs to be soldered onto another cable.
If you have an aftermarket screen that does not have a sleep/wake sensor installed, there are a few workarounds. First, update the iPad to the newest OS, as this workaround will no longer work once you update or restore the device. Another option is to use a small piece of conductive metal to jump the connectors where the sleep/wake sensor would be installed. When you make the connection properly, you will hear an audible "click" and the screen will go black. Then, go to "Display & Brightness" in settings, where the "Lock/Unlock" switch will have appeared. Turn it off, and the sleep/wake button will work normally.
If you are looking to replace the sleep/wake sensor, you can purchase a replacement part online from sites such as Amazon or Aliexpress. When removing the old sensor, it is recommended to use a soldering iron with a small hoof tip, at the lowest temperature your solder can handle. Do not use a heat gun, as the kind of heat needed to melt the solder would destroy the plastic flex.
Sleepwalking: Strategies to Avoid Disturbing the Walker
You may want to see also
Explore related products
Troubleshooting
If your iPad Mini 4's sleep/wake function is not working, there are several troubleshooting steps you can take:
First, check if the issue is hardware or software-related. Try performing a factory reset of your iPad. Make sure to back up your data to iCloud before proceeding. If the issue persists after the reset, it is likely a hardware issue.
Next, inspect the left side of your iPad's display, just left of the home button. If you see a small cable with components that need to be soldered onto another cable, this could be the cause of the issue. You will need to solder these cables together, either by doing it yourself or by taking it to a professional.
If you decide to solder the cables yourself, use a soldering iron with a small hoof tip, at the lowest temperature your solder can handle. Be careful not to short the pads, and consider covering them with tape before closing up the case.
Alternatively, if you are unable to solder the cables, there is a temporary workaround. With the aftermarket screen installed and the device powered on, use a small piece of conductive metal to jump the connectors where the sleep/wake sensor would be installed. When you make the proper connection, you will hear a click, and the screen will go black. Go to Display & Brightness in your settings, and the Lock/Unlock switch will now be available. Turn it off, and your sleep/wake button should work normally.
If none of these steps resolve the issue, you may need to replace your iPad's LCD/digitizer or seek professional assistance.
How to Gently Awaken a Sleepwalker
You may want to see also
Explore related products
Alternative methods
Soldering is a meticulous and time-consuming process that requires skill and practice. While it is a reliable method for creating strong and long-lasting connections, there are alternative methods that can be used to solder the sleep/wake sensor on an iPad Mini 4.
One alternative method is to use a conductive adhesive. Conductive adhesives are user-friendly and consist of a polymer matrix and conductive fillers such as metals or carbon, providing the necessary electrical conductivity. They are often used as a replacement for soldering in microelectronic assemblies and have improved in performance due to advancements in nanotechnology.
Another option is to use spring contacts. Spring contacts are flexible, reliable, and cost-effective, making them a preferred alternative to soldering in various applications. They can withstand extreme temperatures and vibrations without affecting their performance, making them ideal for complex electronic devices where space is limited.
Additionally, you can use cold welding, which utilizes high-pressure and low-temperature processes to bond metals together without the use of heat. This method may be suitable for the sleep/wake sensor on the iPad Mini 4 as it does not require high temperatures that could damage the sensitive components.
If you are unable to solder the sleep/wake sensor, you can try using a small piece of conductive metal to jump the connectors where the sensor would be installed. This method has been suggested by a user on iFixit and may be worth attempting if you do not want to solder.
Revitalizing Inactive Websites: Strategies for Re-engagement
You may want to see also
Frequently asked questions
To solder the sleep/wake sensor on your iPad Mini 4, you will need to remove the connector with 6 solder pads on it. You can use a soldering iron with a small hoof tip, at the lowest temperature your solder can handle, to slowly peel away the 6 pads that need to be desoldered and resoldered.
The soldering point for the sensor is near the home button or on the left-hand side when the iPad digitizer front side is facing down.
Yes, you can use a small piece of conductive metal to jump the connectors where the sleep/wake sensor would be installed. When you hear a click and the screen goes black, go to Display & Brightness in settings and turn off the Lock/Unlock switch.
